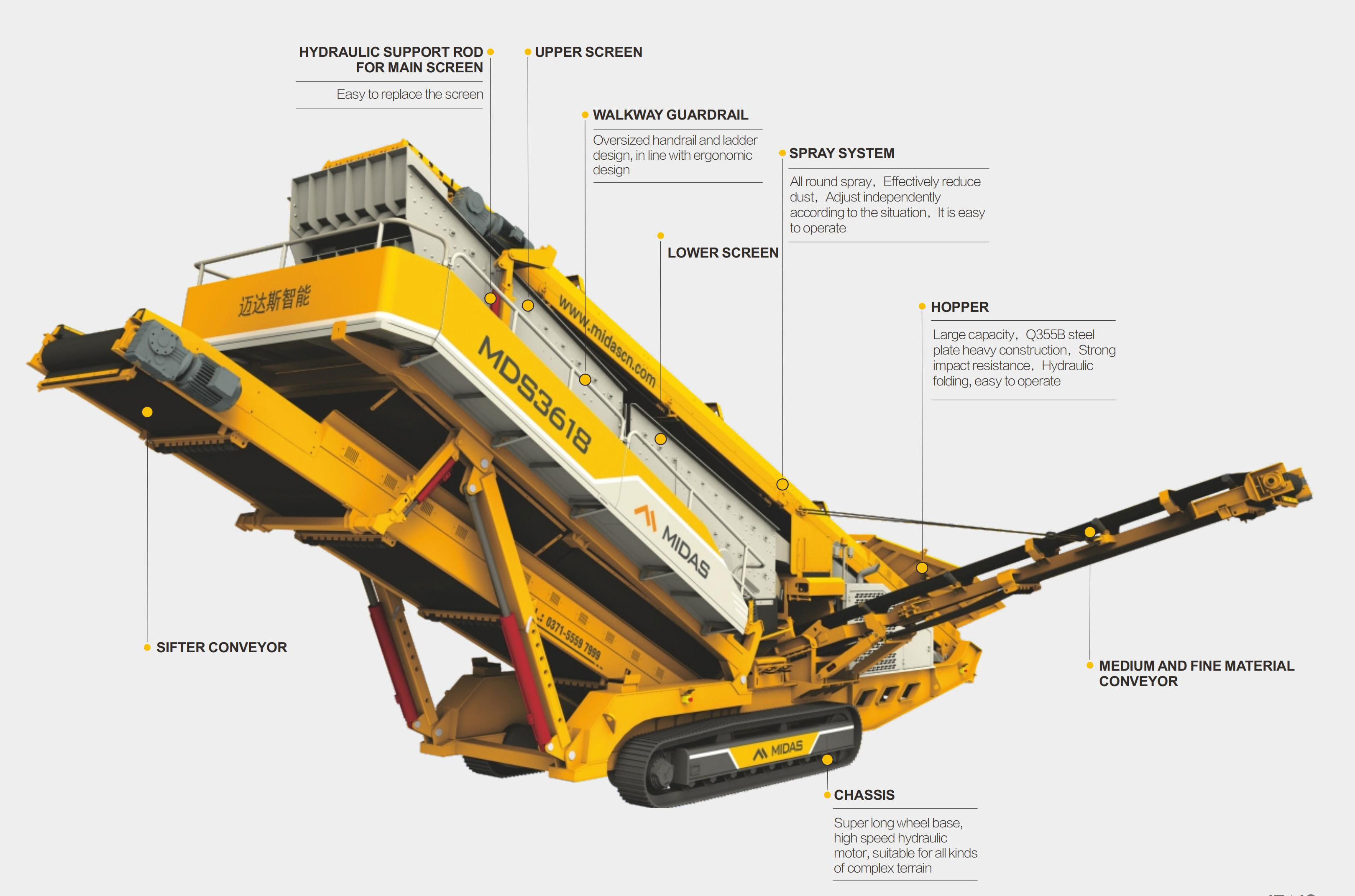

MDS SERIES TRACKED MOBILE SCREENING STATION
Double section of the screen body,Accurate screening,Hydraulic auxiliary
MIDAS MDS series crawler mobile screen station, equipped with vehicle-mounted fully automatic folding belt conveyor, large processing capacity, can be used for fine screening of materials, suitable for all kinds of sand and construction waste after the crushing of finished material screening, flexible overall transfer, durable, high reliability.
Applicable fields：Material or coarse material used for screening processing、Sand/pebble material classification、Construction waste material classification、Metallurgical/coal material classification、Classification of building materials.
Processing capacity：
200-500 （t/h）
Main machine power：
64.5-108 （KW）
Category:
Service Hotline:
Product Details
MIDAS MDS series crawler mobile screen station, equipped with vehicle-mounted fully automatic folding belt conveyor, large processing capacity, can be used for fine screening of materials, suitable for all kinds of sand and construction waste after the crushing of finished material screening, flexible overall transfer, durable, high reliability.
Product parameters
| Model | MDS-3618E |
| Feeder | |
|---|---|
| Volume(m³) | 2.8 |
| Feeding height(mm) | 1979 |
| Maximum feed size(mm) | 200 |
| Feeding capacity(t/h) | 350 |
| Screening | |
| Vibrating screen length×width(mm) | 2x1800x3000 |
| Number of layers | 3 |
| Conveyor | |
| Main feeding conveyor belt width (mm) | 1000 |
| Transfer conveyor belt width (mm) | 650 |
| Fine material conveyor belt width×stacking height(mm) | 1200x4399 |
| Large material conveyor belt width×stacking height(mm) | 500x3650 |
| Medium material conveyor belt width×stacking height(mm) | 650x3755 |
| Medium & Fine material conveyor belt width×stacking height(mm) | 650x3603 |
| Power Unit | |
| Generator power (kW) | 150KW |
| Diesel tank capacity | 400L |
| Hydraulic tank capacity | 400L |
| Technical Data | |
| Total power(kw) | 74.5 |
| Host power(kw) | 2x5.5x2 |
| Processing capacity(t/h) | 200-500 |
| Track speed(km/h) | 0.6-1 |
| Total weight(t) | 40 |
| Transport dimension(mm) | 16468x3366x3776 |
