TRACKED MOBILE CONE CRUSHING AND SCREENING STATION TX3CE
Special for hard rock crushing,Crushing and screening integrated,Dual use of oil and electricity

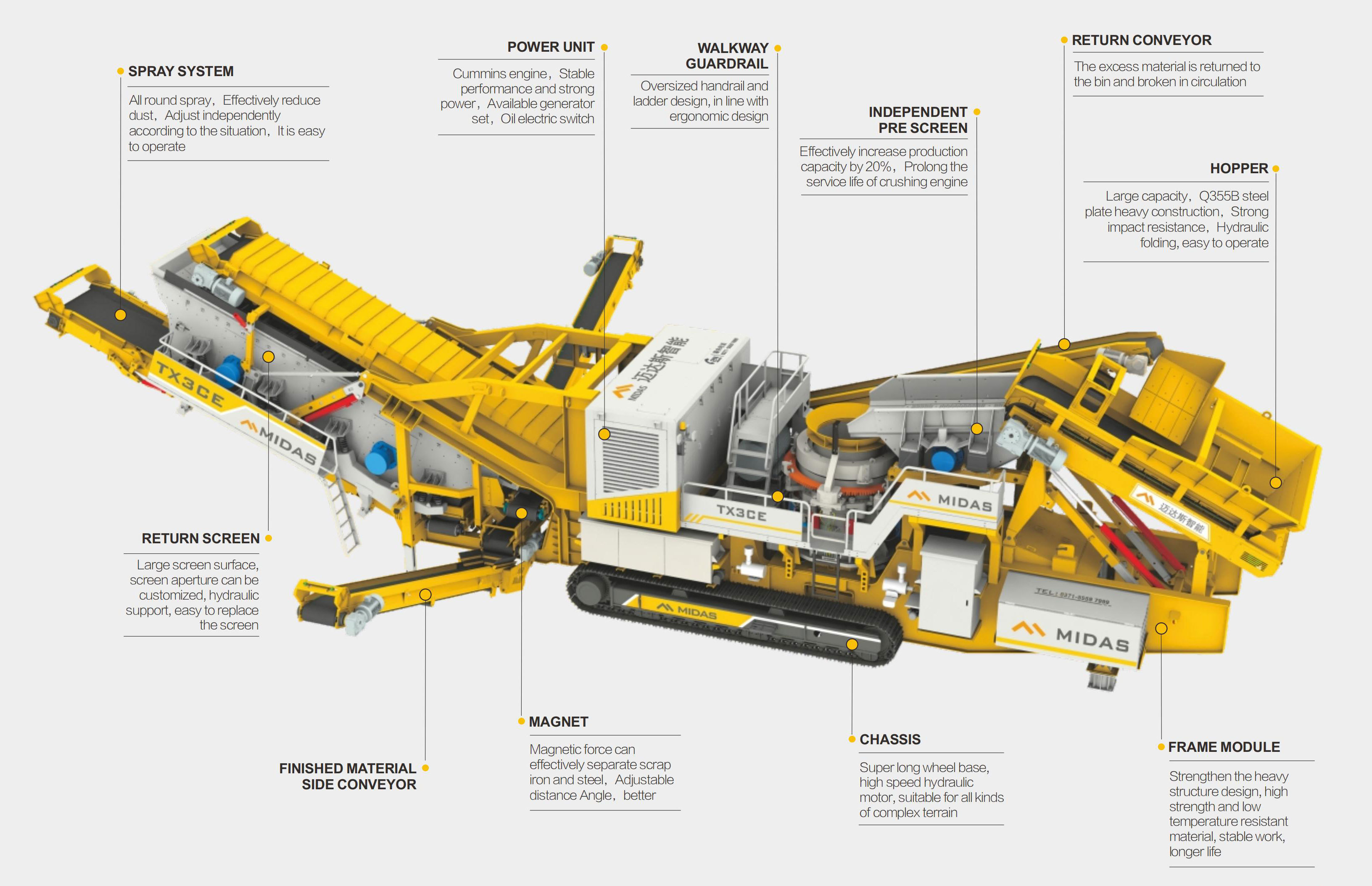

TX3CE is the highly efficient king in the field of hard rock crushing and screening in crawler movement. It not only integrates the three core units of vibration feeder, cone breaking and three-layer double screen to achieve the screening effect of split production line, but also equipped with independent pre-screening device to further improve the crushing efficiency; It has also been upgraded to petrol-electric hybrid power, which can be started with one button on the scene. It can be widely used in the crushing and screening of medium and high hardness rock, which is a key step of Midas in the efficient integration of the all-in-one machine.
Applicable fields：Secondary and tertiary crushing and screening of medium and high hardness materials，Hard rock (granite/basalt/cobblestone/diabase, etc.) Secondary crushing and screening
Processing capacity：
150-430 （t/h）
Main machine power：
350.1 （KW）
Service Hotline:
Product Details
TX3CE is the highly efficient king in the field of hard rock crushing and screening in crawler movement. It not only integrates the three core units of vibration feeder, cone breaking and three-layer double screen to achieve the screening effect of split production line, but also equipped with independent pre-screening device to further improve the crushing efficiency; It has also been upgraded to petrol-electric hybrid power, which can be started with one button on the scene. It can be widely used in the crushing and screening of medium and high hardness rock, which is a key step of Midas in the efficient integration of the all-in-one machine.
Product parameters
| Model | TX3CE |
| Feeder | |
|---|---|
| Feeder width × length(mm) | 1200×4055 |
| Feeding height(mm) | 3031 |
| Maximum feed size(mm) | 225 |
| Crusher | |
| Host model | HPC300 |
| Return screen length×width(mm) | 2000×2500/2000×3500 |
| Number of layers | 3 |
| Closed side setting (mm) | 10-45 |
| Conveyor | |
| Main conveyor belt width (mm) | 1200 |
| Transfer conveyor belt width (mm) | 500 |
| Re-circulation conveyor belt width (mm) | 500 |
| Under screen conveyor belt width (mm) | 1200 |
| Stack height （mm） | 3652 |
| Finished material side conveyor belt width×stacking height(mm) | 500x3000 |
| Power Unit | |
| Generator power (kW) | 500KW |
| Diesel tank capacity | 1200L |
| Hydraulic tank capacity | 400L |
| Technical Data | |
| Total power(kw) | 335.6 |
| Host power(kw) | 250 |
| Processing capacity(t/h) | 150-430 |
| Track speed(km/h) | 0.6-1 |
| Total weight(t) | 83 |
| Transport dimension(mm) | 22259x4133x4090 |
