TRACKED MOBILE IMPACT CRUSHING AND SCREENING MI260RTE
Crushing and screening integrated,Dual use of oil and electricity,One click start with PLC
Midas MI-RTE series crawler mobile crushing & screening station has completed the simultaneous crushing and screening on one crawler chassis, and has been upgraded to oil and electricity dual power. It is equipped with PLC one button intelligent start, which can be used for primary and secondary crushing, and is suitable for medium soft rock and Construction waste. The entire machine has a wide range of applications, high intelligence, and simpler operation.
Applicable fields：Primary and secondary crushing stages of medium and soft hardness materials，Mine/ore/coal mining、Concrete mixing plant、Dry mortar/power plant desulfurization、Quartz sand、Reuse of construction waste、Road and bridge construction.
Processing capacity：
160-350 （t/h）
Main machine power：
281.7 （KW）
Service Hotline:
Product Details

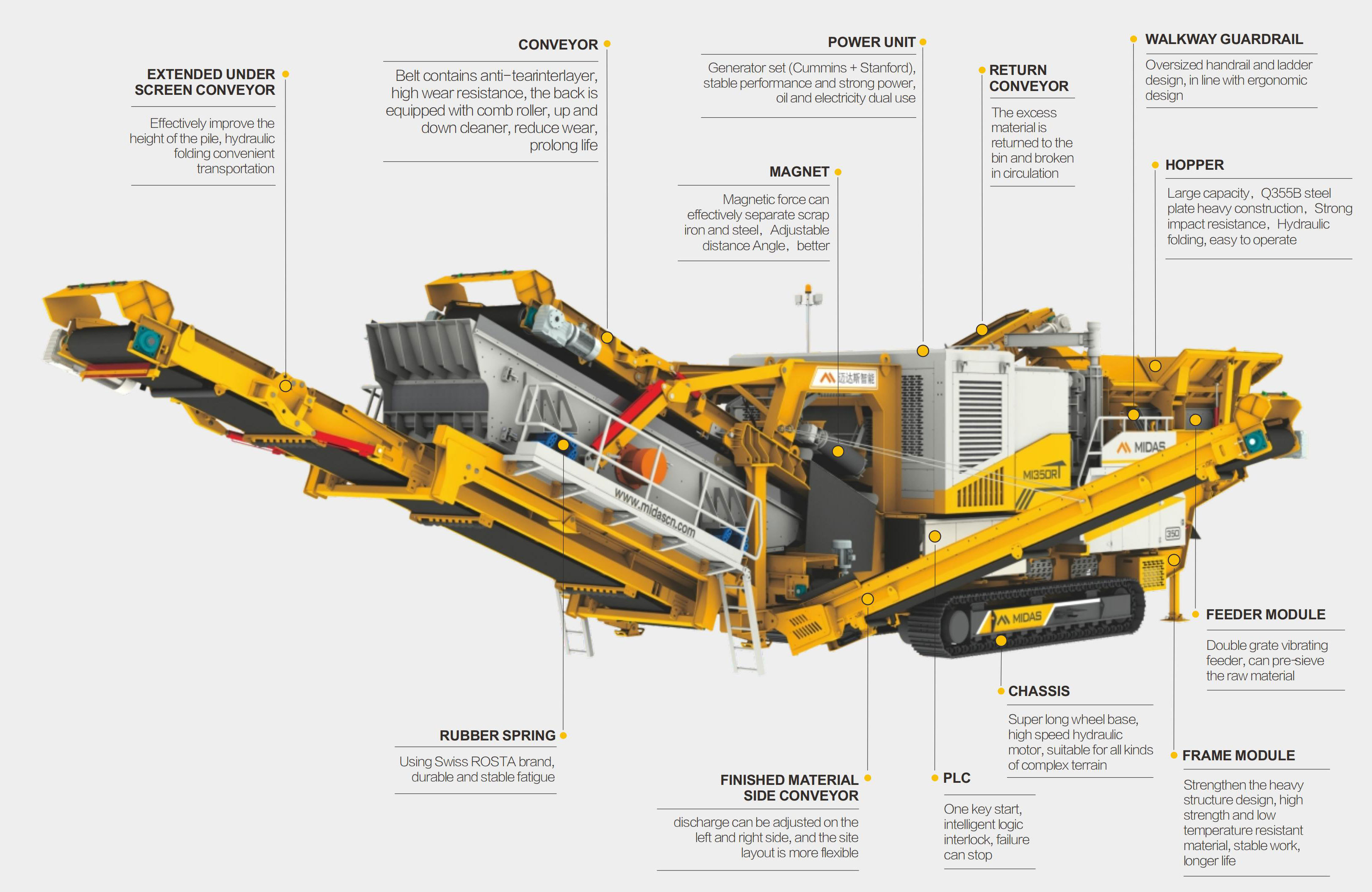

Midas MI-RTE series crawler mobile crushing & screening station has completed the simultaneous crushing and screening on one crawler chassis, and has been upgraded to oil and electricity dual power. It is equipped with PLC one button intelligent start, which can be used for primary and secondary crushing, and is suitable for medium soft rock and Construction waste. The entire machine has a wide range of applications, high intelligence, and simpler operation.
Product parameters
| Model | MI260RTE |
| Feeder | |
|---|---|
| Volume(m³) | 7 |
| Feeding height(mm) | 4174 |
| Maximum feed size(mm) | 600 |
| Feeding capacity(t/h) | 300 |
| Crusher | |
| Host model | MIX2 |
| Return screen length×width(mm) | 1740x5000 |
| Number of layers | 2 |
| Closed side setting (mm) | 25-100 |
| Conveyor | |
| Main conveyor belt width (mm) | 1200 |
| Transfer conveyor belt width (mm) | 500 |
| Re-circulation conveyor belt width (mm) | 500 |
| Under screen conveyor belt width (mm) | 1000 |
| Stack height （mm） | 4100 |
| Finished material side conveyor belt width×stacking height(mm) | 500x3064 |
| Power Unit | |
| Generator power (kW) | 400KW |
| Diesel tank capacity | 1000L |
| Hydraulic tank capacity | 400L |
| Technical Data | |
| Total power(kw) | 280.7 |
| Host power(kw) | 200 |
| Processing capacity(t/h) | 160-350 |
| Track speed(km/h) | 0.6-1 |
| Total weight(t) | 68 |
| Transport dimension(mm) | 19870x3992x3994 |
