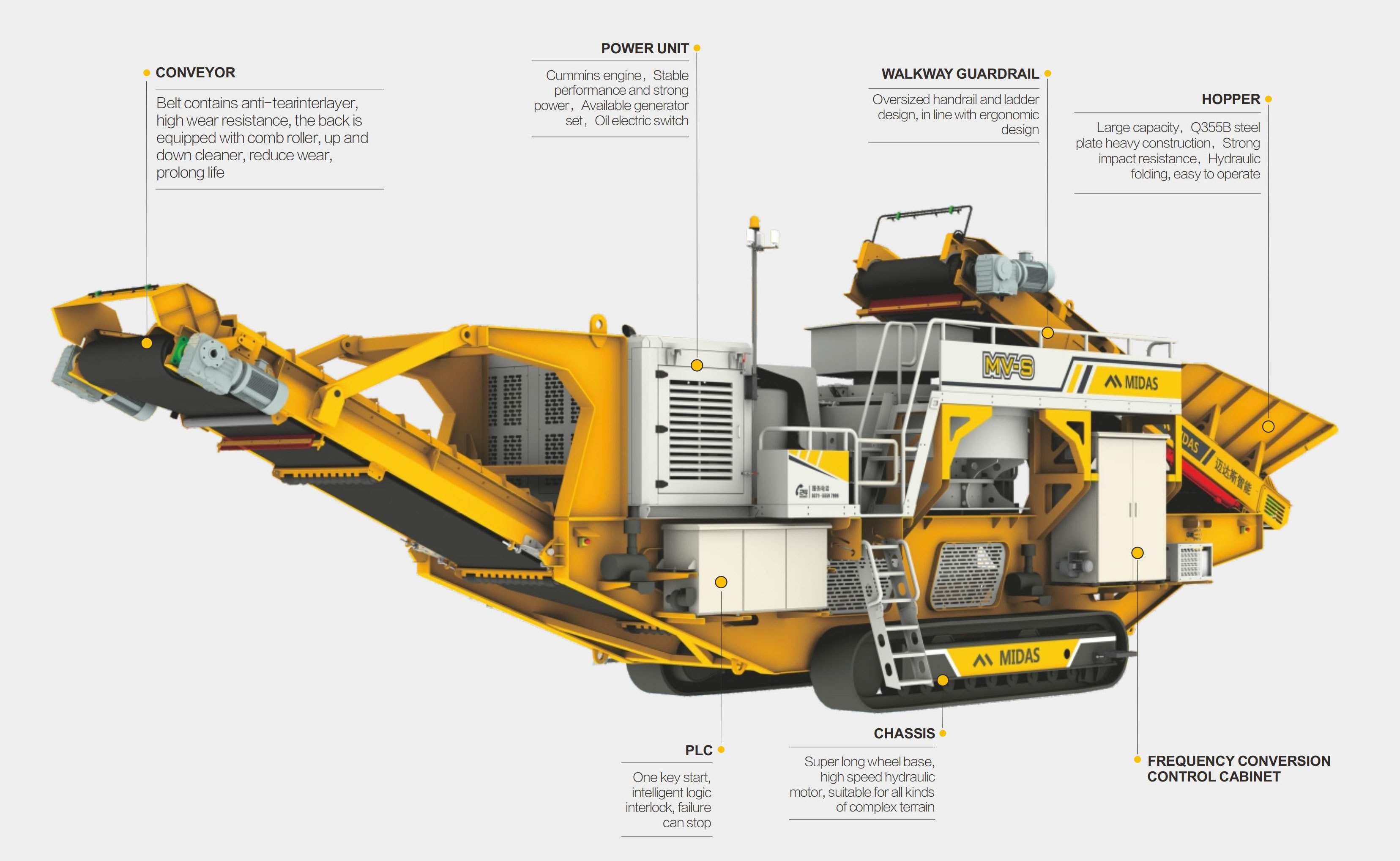

MV-S SERIES TRACKED MOBILE SAND-MAKING STATION
Large throughput,High sand formation rate,Low consumables cost
Midas MV-S series crawler mobile sand making station adopts a new impeller and a special sealing structure for the main machine, which has low energy consumption and long service life, and has three driving modes: external power, oil power integration and full hydraulic. Suitable for sand shaping or further sand making after secondary crushing. The overall transition is flexible, with a large processing capacity and good crushing particle shape.
Applicable fields：Used for material shaping、Metallic and non-metallic ores、Building materials、Artificial sand making、Metallurgical slag.
Processing capacity：
10-500 （t/h）
Main machine power：
434 （KW）
Category:
Service Hotline:
Product Details
Midas MV-S series crawler mobile sand making station adopts a new impeller and a special sealing structure for the main machine, which has low energy consumption and long service life, and has three driving modes: external power, oil power integration and full hydraulic. Suitable for sand shaping or further sand making after secondary crushing. The overall transition is flexible, with a large processing capacity and good crushing particle shape.
Product parameters
| Model | MV-S900RE | MV-S900RTE | MV-S1240E |
| Feeder | |||
|---|---|---|---|
| Volume(m³) | 3.7 | 3.7 | 6.5 |
| Feeding height(mm) | 3200 | 3200 | 2698 |
| Maximum feed size(mm) | 50 | 50 | 100 |
| Feeding capacity(t/h) | 300 | 300 | 500 |
| Crusher | |||
| Host model | S900 | S900 | S1240 |
| Return screen length×width(mm) | 1740x5000 | 1740x5000 | － |
| Number of layers | 1 | 2 | － |
| Conveyor | |||
| Main conveyor belt width (mm) | 1200 | 1200 | 1200 |
| Transfer conveyor belt width (mm) | 500 | 500 | － |
| Re-circulation conveyor belt width (mm) | 500 | 500 | － |
| Under screen conveyor belt width (mm) | 1000 | 1000 | － |
| Stack height （mm） | 3276 | 3276 | － |
| Power Unit | |||
| Generator power (kW) | 500KW | 480KW | 600KW |
| Diesel tank capacity | 1200L | 1200L | 1000L |
| Hydraulic tank capacity | 400L | 300L | 400L |
| Technical Data | |||
| Total power(kw) | 318 | 337 | 434 |
| Host power(kw) | 250 | 250 | 400 |
| Processing capacity(t/h) | 150-300 | 150-300 | 100-500 |
| Track speed(km/h) | 0.6-1 | 0.6-1 | 0.6-1 |
| Total weight(t) | 44 | 46 | 58 |
| Transport dimension(mm) | 19113×3721×3760 | 19762x3733x3699 | 20542×3299×3976 |
