MJ SERIES TRACKED MOBILE JAW CRUSHING STATION
Independent pre screen,Intelligent feeding system,Large range of discharge

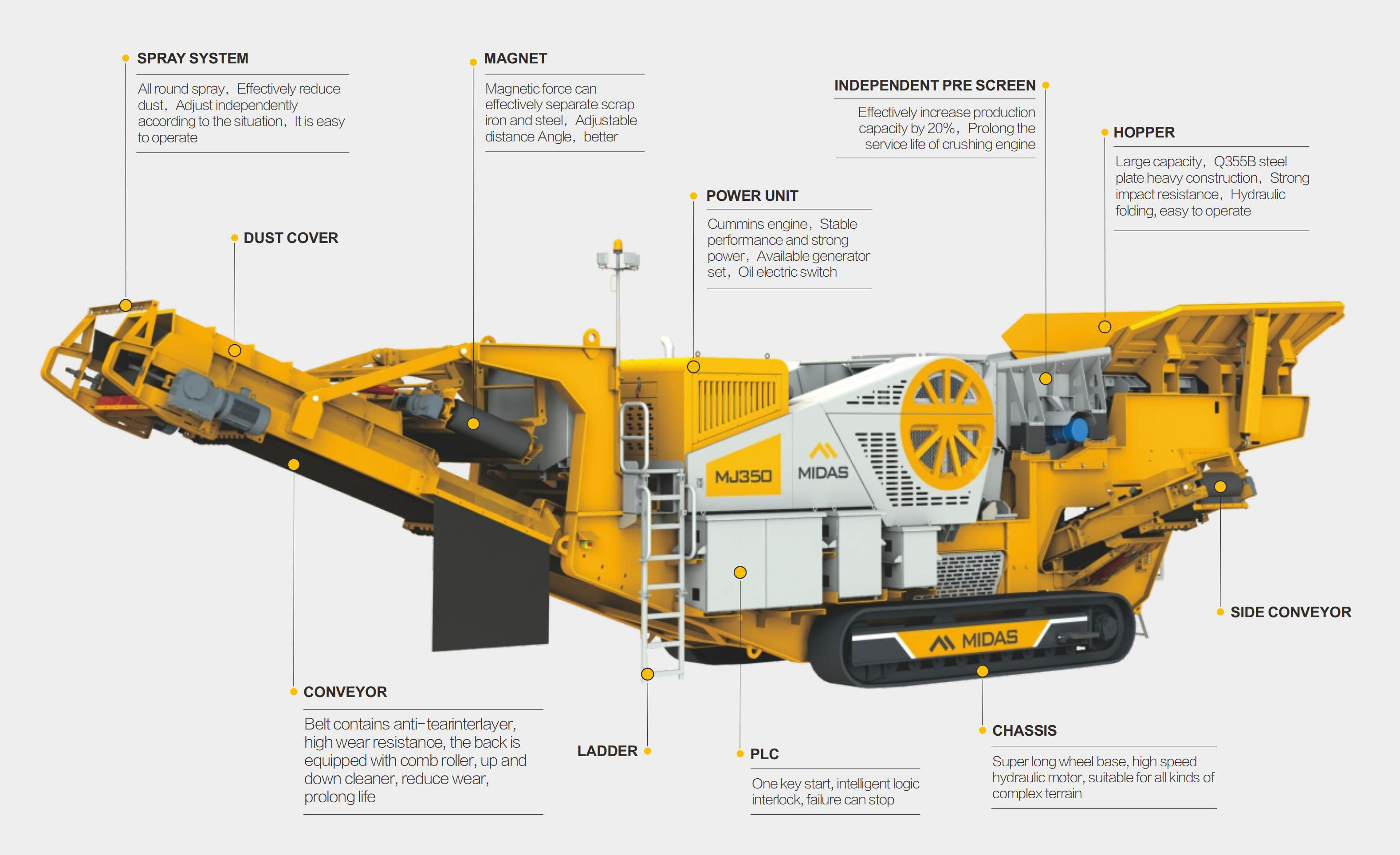

Equipped with European C series jaw crusher, large folding bin, equipped with independent pre-screening system, in addition to the De-ironing separator,spray device, mainly do the primary crushing of materials, big feeding size, wide discharging range, suitable for all kinds of rocks. Convenient transfer, high crushing efficiency.
Applicable fields：Medium and high hardness material of the first crushing or primary crushing、Ore crushing、Construction waste recycling、Aggregate production、Highways/railways、Road and bridge construction...
Processing capacity：
80-570 （t/h）
Main machine power：
106.3-149.8 （KW）
Category:
Service Hotline:
Product Details
Equipped with European C series jaw crusher, large folding bin, equipped with independent pre-screening system, in addition to the De-ironing separator,spray device, mainly do the primary crushing of materials, big feeding size, wide discharging range, suitable for all kinds of rocks. Convenient transfer, high crushing efficiency.
Product parameters
| Model | MJ150SE | MJ260E | MJ-350E | MJ-450SE |
| Feeder | ||||
|---|---|---|---|---|
| Volume(m³) | 4 | 6 | 6 | 6 |
| Feeding height(mm) | 3500 | 4357 | 4357 | 4357 |
| Maximum feed size(mm) | 430 | 560 | 630 | 720 |
| Crusher | ||||
| Host model | MC80 | MC106 | MC113 | MC120 |
| Feed opening(mm) | 800×510 | 1060X700 | 1130×750 | 1200×870 |
| Closed side setting(mm) | 40-175 | 70-200 | 70-200 | 70-200 |
| Conveyor | ||||
| Main conveyor width(mm) | 1000 | 1200 | 1200 | 1200 |
| Stacking height(mm) | 3307 | 3470 | 3470 | 3455 |
| Side conveyor width×height (mm) | 650x2196 | 650x2196 | 650x2196 | 650x2196 |
| Driving mode | Motor reducer drive | Motor reducer drive | Motor reducer drive | Motor reducer drive |
| Power Unit | ||||
| Generator power (kW) | 150KW | 250KW | 250KW | 300KW |
| Diesel tank capacity | 400L | 600L | 600L | 800L |
| Hydraulic tank capacity | 250L | 300L | 300L | 400L |
| Technical Data | ||||
| Total power(kw) | 94.2 | 146.8 | 146.8 | 185.4 |
| Host power(kw) | 75 | 110 | 110 | 160 |
| Processing capacity(t/h) | 55-335 | 150-500 | 160-570 | 175-610 |
| Track speed(km/h) | 0.6-1 | 0.6-1 | 0.6-1 | 0.6-1 |
| Total weight(t) | 34 | 50 | 54 | 58 |
| Transport dimension(mm) | 12500 ×2900 ×3500 | 16354 ×3384 ×3725 | 16042 ×3262 ×3813 | 15038 ×3070 ×3947 |
