MSH SERIES TRACKED MOBILE HORIZONTAL SCREENING STATION
Huge handling capacity,Advanced mixing and screening,Screening of viscous materials
The three-axis drive elliptical vibration track has the advantages of both circular vibrating screen and linear vibrating screen; With adjustable amplitude, synchronous excitation, and equipped with large torque slow speed feeder to ensure uniform feeding, it has better effect on screening materials with high viscosity and difficulty. It is widely used in fields with high requirements for screening efficiency and accuracy. The whole machine has large processing capacity, strong stability, many screening types and high grading accuracy.
Applicable fields：Used for preliminary screening of soil and rock separation，Highway, railway, bridge and other high - standard engineering，Gobi weathered stone finished materials (with a certain viscosity) large capacity screening.
Processing capacity：
300-800 （t/h）
Main machine power：
93 （KW）
Category:
Service Hotline:
Product Details

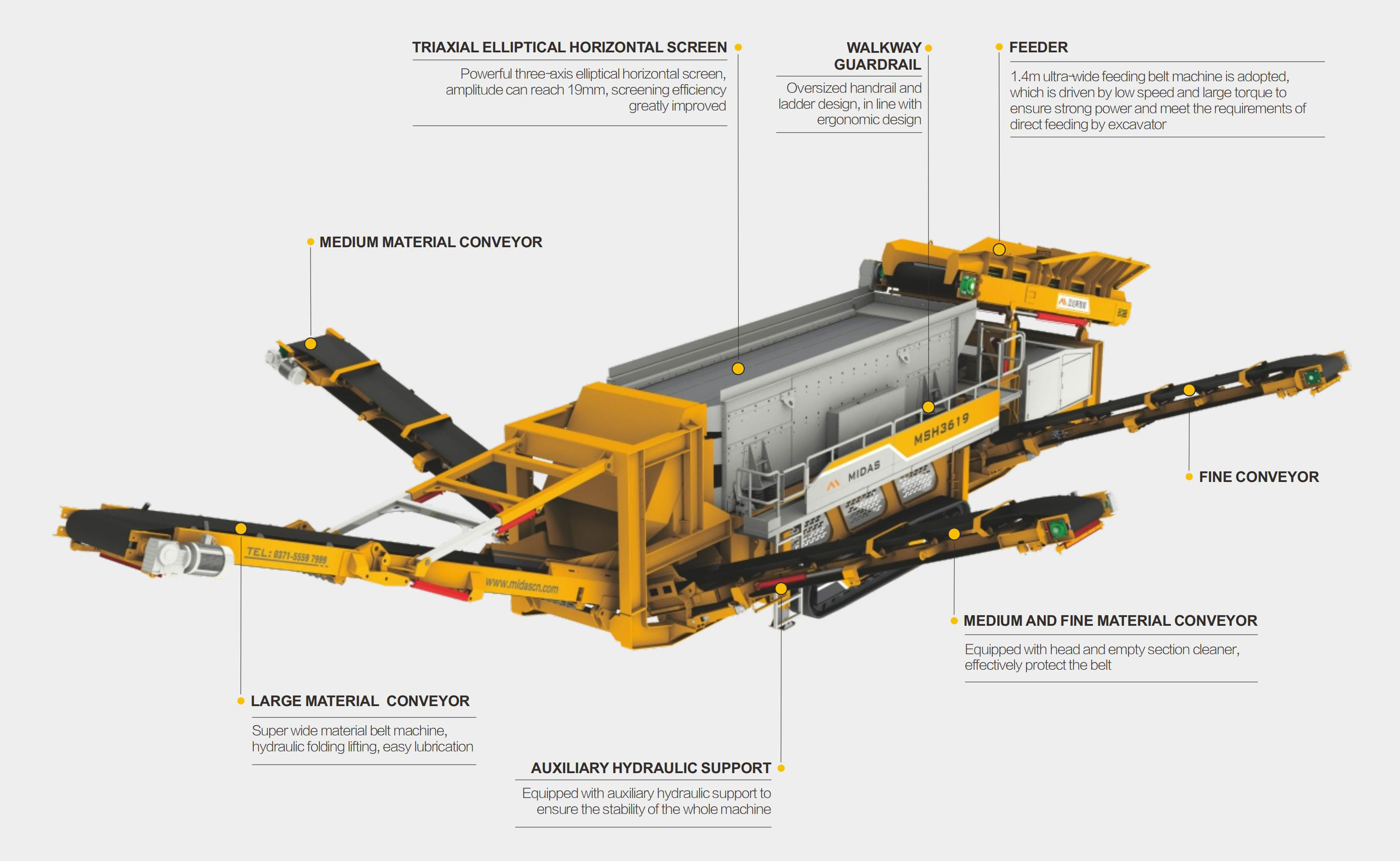

The three-axis drive elliptical vibration track has the advantages of both circular vibrating screen and linear vibrating screen; With adjustable amplitude, synchronous excitation, and equipped with large torque slow speed feeder to ensure uniform feeding, it has better effect on screening materials with high viscosity and difficulty. It is widely used in fields with high requirements for screening efficiency and accuracy. The whole machine has large processing capacity, strong stability, many screening types and high grading accuracy.
Product parameters
| Model | MSH-3620E |
| Feeder | |
|---|---|
| Volume(m³) | 5 |
| Feeding height(mm) | 3260 |
| Maximum feed size(mm) | 120 |
| Feeding capacity(t/h) | 500 |
| Screening | |
| Vibrating screen length×width(mm) | 1930x6100 |
| Number of layers | 3 |
| Conveyor | |
| Main feeder conveyor belt width (mm) | 1400 |
| Large material conveyor belt width×stacking height(mm) | 1000x4415 |
| Medium material conveyor belt width×stacking height(mm) | 800x3830 |
| Medium & fine material conveyor belt width×stacking height(mm) | 800x3830 |
| Fine material conveyor belt width×stacking height(mm) | 800x3830 |
| Under screen conveyor belt width (mm) | 1000 |
| Power Unit | |
| Generator power (kW) | 150KW |
| Diesel tank capacity | 400L |
| Hydraulic tank capacity | 300L |
| Technical Data | |
| Total power(kw) | 93 |
| Host power(kw) | 30 |
| Processing capacity(t/h) | 350-500 |
| Track speed(km/h) | 0.6-1 |
| Total weight(t) | 44 |
| Transport dimension(mm) | 18243×4070×3840 |
